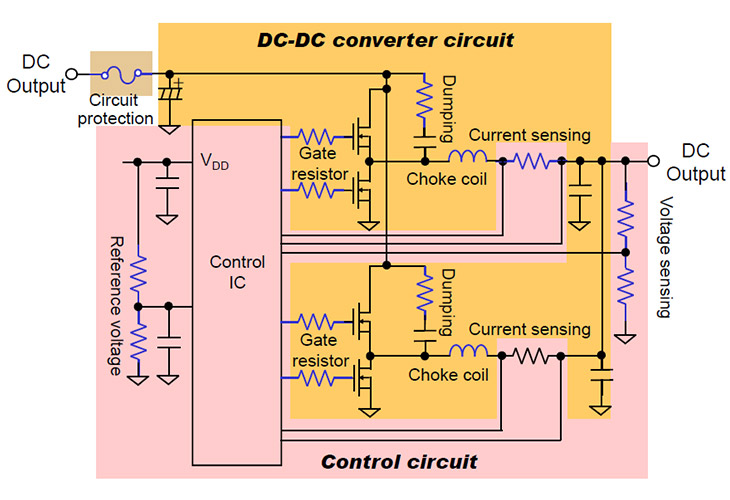

Step Down DC-DC Converter for High Current Use

Input Circuit / DC-DC Converter Control Circuit

A Input Circuit / DC-DC Converter

  Surface Mounting Type Leaded Type
General Purpose Resistors RK73G, RK73H, RK73B CF(P)
High Power Rating Resistors SG73P,  WK73R,  SLR  MOS
Anti-Sulfur Resistors RS73-RT, RK73-RT, SG73S-RT, SG73P-RT,
SG73-RT, HV73-RT, WK73-RT
Gate resistor, Dumping / Anti-Surge Resistors SG73S, SG73P, SG73, SG73G, WG73
Circuit Protection / Fuses CCF1N, CCF1F

B Control Circuit

  Surface Mounting Type Leaded Type
General Purpose Resistors RK73G, RK73H, RK73B
Anti-Sulfur Resistors RS73-RT, RK73-RT, SG73S-RT, SG73P-RT,
SG73-RT, HV73-RT, WK73-RT
Current Sensing / Low Resistance Resistors UR73(D), UR73V, WK73S, WU73, TLRH, TLR,
PSL2, PSF4,TSL, SL,
SLN, SLW1,SLN3,SLN5
Reference Voltage , Voltage Sensing / High Precision Resistors RN73H, RN73R, RS73
